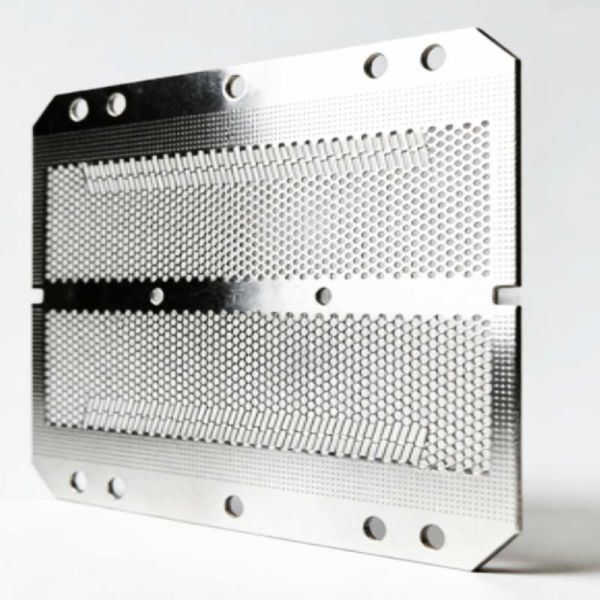

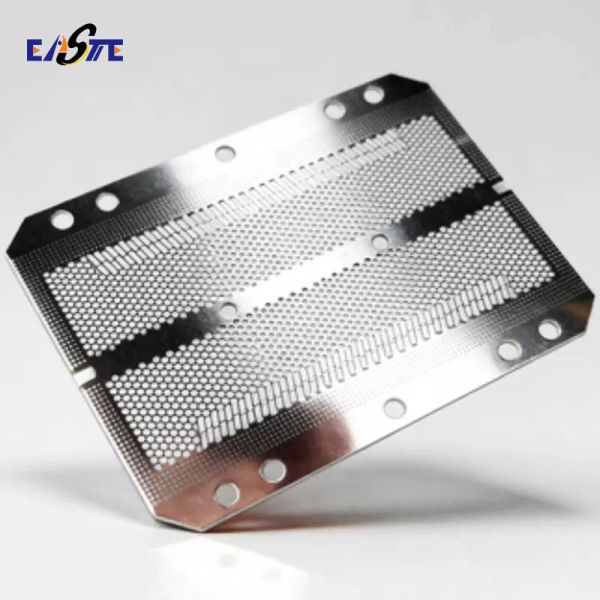

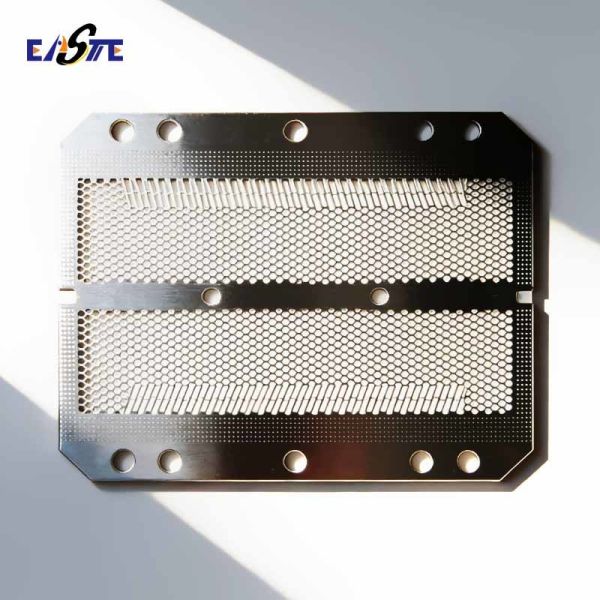

Precision Etched Metal Blades Custom Chemical Etching Service
Precision Chemical Etched Razor Blades Manufacturer
Xinhaisen manufactures custom etched metal blades using precision photo chemical etching technology. Unlike conventional machining or stamping, chemical etching uses a controlled photochemical process to create complex blade profiles from thin metal sheets without mechanical cutting forces.
Our precision etched blades can be manufactured from stainless steel, spring steel, nickel, copper alloys and other compatible metals. Blade geometry, thickness, profile, holes, slots and edge patterns can be customized according to customer drawings, CAD files or samples.
The process is suitable for prototypes, small batches and volume production where precision, repeatability and complex geometry are required.
Manufacturing Process
-
Material Selection & Cleaning: High-carbon steel, stainless steel, or specialized alloys are selected and meticulously cleaned.
-
Photoresist Lamination: A light-sensitive polymer film is applied to the metal sheet.
-
Precision Patterning: The blade design is exposed onto the resist using high-resolution digital tooling.
-
Controlled Etching: The exposed metal areas are etched away with a controlled chemical solution, forming the exact blade profile and edge.
-
Stripping & Cleaning: The photoresist is removed, and the blades undergo thorough cleaning.
-
Secondary Processing: This includes optional hardening, coating, and final sharpening/honing.
-
100% Quality Inspection: Each batch is inspected for edge integrity, dimensional accuracy, and surface finish.
Razor Blades Features
- Precision etched metal blade profiles
- Custom blade geometry from CAD drawings or samples
- Suitable for thin stainless steel and other metal materials
- Complex contours, slots and internal features can be produced
- No mechanical cutting force during the etching process
- Burr-minimized etched edges
- Consistent dimensions for repeat production
- Suitable for prototypes and mass production
- Custom thickness, dimensions and tolerances available
- OEM and custom manufacturing support
Razor Blades Specifications
| Parameter |
Specification |
| Material |
High-Carbon Steel, Stainless Steel,Alloys,etc. |
| Standard Thickness |
0.02mm - 1.5 mm |
| Tolerance |
±0.01 mm |
| Edge Sharpness (Ra) |
< 0.2 µm achievable (post-processing dependent) |
| Surface Finish |
Bright, Matte, or as per requirement |
| Product Name |
precision etched blade
|
| MOQ |
Negotiable |
| sample |
available |
Razor Blades Applications
Precision etched metal blades can be customized for applications including:
- Precision cutting equipment
- Industrial cutting systems
- Slitting and trimming equipment
- Scraping and stripping applications
- Shaving and grooming products
- Medical and laboratory devices
- Electronic components
- Sensor and instrument components
- Thin-film and foil processing
- Custom industrial mechanisms
Our Advantages
-
Precision Edge Technology: Our core etching expertise allows us to create blades with superior and more consistent initial sharpness than many conventional methods.
-
Speed & Flexibility: Rapid prototyping (5-7 days) and ability to handle urgent, high-volume orders without tooling delays.
-
End-to-End Control: We manage the entire process from material procurement to final inspection, ensuring quality and traceability.
-
High-Volume Mastery: Equipped to fulfill "super-large" orders while maintaining stringent quality standards.
-
Proven Reputation: Trusted by clients in demanding industries for our high accuracy, fast turnaround, and ability to handle complex, varied orders.
FAQ
Q: How does etched blade sharpness compare to traditionally ground blades?
A: Etching creates a fundamentally sharp edge from the material itself. While both methods can achieve high sharpness, etching offers superior consistency and eliminates microscopic burrs from mechanical deformation, often resulting in a smoother initial shave. Final honing can be applied post-etch for ultimate sharpness.
Q: Can you create blades with lubrication strips or specific hole patterns?
A: Absolutely. Photochemical etching is ideal for integrating precise micro-holes, slots, or complex patterns into the blade design for functions like lubrication delivery, hair clearance, or weight reduction.
Q: What are etched razor blades?
Etched razor blades are precision cutting components manufactured by chemical etching, a process that creates burr-free edges, intricate geometries, and high dimensional accuracy without introducing heat or mechanical stress.
Q: What is your minimum order quantity ?
A: We are flexible to support both prototyping/low-volume needs and mass production. Please contact us with your specific project details.
Q: Can you work with our custom alloy or design?
A: Yes. We have extensive experience processing various metals. Our engineering team can collaborate on optimizing your design for the etching process and material selection.
Welcome to contact us at any time!
